In modern dairy and beef production, high-yielding animals face a critical challenge: they cannot consume enough dry matter to meet their energy needs, especially during early lactation or feedlot finishing. While fats are the densest energy source, feeding them directly to ruminants causes problems. Conventional fats are broken down in the rumen, the animal’s primary fermentation vat, disrupting fibre digestion and lowering feed intake.
Calcium salts of fatty acids (CSFA), often called “protected fat” or “rumen-inert fat,” solve this problem. They provide a concentrated, high-energy feed supplement that bypasses the rumen and is digested in the abomasum where the acidic environment releases the fatty acids for intestinal absorption. Marketed under names like Megalac, CSFA are a key component of modern dairy and beef rations.
How Calcium Salts Work: A Two-Stage Process
The concept is based on a simple, elegant chemical principle. Fatty acids from vegetable oils (like palm oil) are reacted with a calcium source to form a calcium salt. In the neutral pH of the rumen, the salt remains intact. When it reaches the abomasum (pH 2-4), the acidic environment breaks the bond, releasing the fatty acids for digestion and absorption. This ensures the energy reaches the animal’s small intestine where it can be used for milk production, body condition, and fertility.
Synthesis Process: Saponification and Beyond
The industrial production of CSFA has been optimized over decades. The core reaction is saponification, where a fat source reacts with a calcium base (like calcium oxide or calcium hydroxide). The search results highlight different production routes:
- Saponification of Triglycerides: In the 1990s, lipase enzymes were explored for hydrolysing oils like soybean and rapeseed oil to produce fatty acids, which were then converted to calcium salts. Other patents describe using high-pressure reactors to directly saponify natural fats with calcium oxide, yielding a product with a high fatty acid content (82-86%) without costly concentration steps.
- Saponification of Fatty Acids: A common and efficient industrial route involves reacting a source of free fatty acids (like distilled palm fatty acids or acidulated soapstock) with a calcium base in a high-shear mixer. For example, a 2023 industry report highlights a new technology for manufacturing effective feed.
- Optimized Parameters: Research from China (COFCO Corporation) optimized the synthesis of calcium salts of palmitic acid using a 3% diethanol amine dosage (by weight) as an emulsifier. The optimal conditions were a reaction time of 1.5 hours at 65°C and a 4-hour emulsification stage, achieving a 95.57% yield and a 97.76% fatty acid binding rate. Another study from Yangzhou University optimized the double decomposition method for palm oil, achieving a maximum yield of 96.34%.

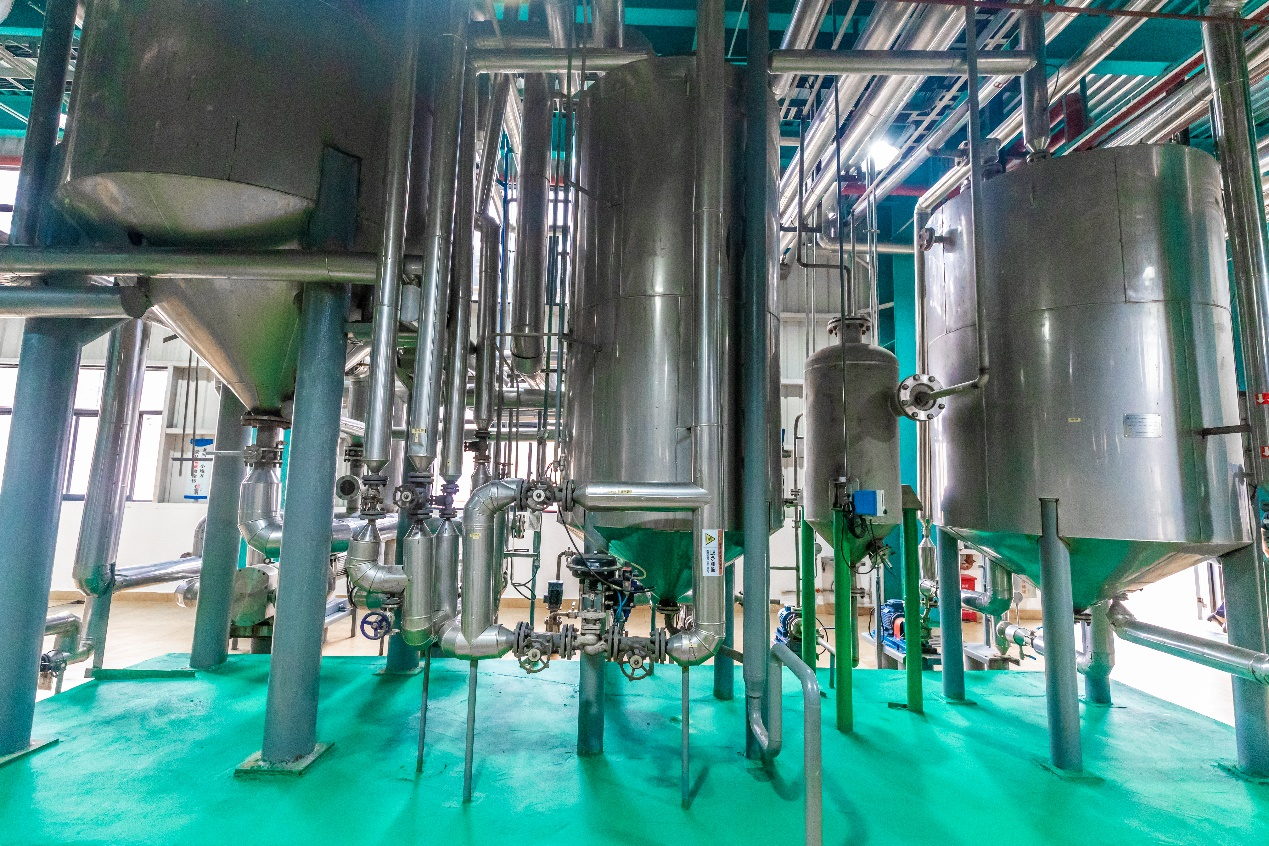

Equipment and Production Line
A typical CSFA production line is designed for continuous, efficient operation. Key equipment includes:
- High-Shear Mixer: The heart of the process, where the fatty acid source and calcium base are intimately mixed at high speed to initiate and drive the saponification reaction. This ensures a uniform, high-quality product.
- Extruder / Pellet Mill: The molten CSFA is often formed into pellets. Calcium salts act as excellent lubricants. Early patents show that adding calcium salts can increase the capacity of a pellet mill by three times while reducing power consumption to 22% of the requirement. The process can use a ring die extruder, often without steam conditioning.
- Cooler and Dryer: The extruded pellets are cooled and dried using a horizontal belt cooler or a counterflow cooler to reach the final product moisture and temperature specifications.
- Screening and Packaging: Finished pellets are screened to remove fines, which are then recycled back into the process. The final product is packaged in bags or sold in bulk.
Applications and Benefits
CSFA is a versatile feed additive with well-documented benefits:
- For Dairy Cows: CSFA supplementation increases milk yield and milk fat percentage. It supports body condition and improves fertility, particularly during early lactation when cows are in negative energy balance.
- For Feedlot Cattle: In beef cattle, CSFA improves energy intake and feed efficiency. A study showed that supplementing CSFA reduced systemic inflammation markers (like haptoglobin) and improved rumen health in cattle fed high-grain diets.
- Pelleting Aid: Beyond its nutritional value, CSFA acts as a lubricant in feed mills. Adding 2% CSFA to cottonseed meal increased pelleting capacity by over 300% and significantly reduced energy consumption, producing smoother, more durable pellets.
Zhengzhou Ocean offers complete, turnkey production line solutions for calcium salts of fatty acids. Our processes can handle a wide range of fatty feedstocks including palm fatty acid distillate (PFAD), acid oil, and animal fats. From high-shear reaction systems to fully automated pelletizing and packaging lines, our modular designs provide high yields, low energy consumption, and consistent product quality to meet the growing demands of the animal nutrition industry.
